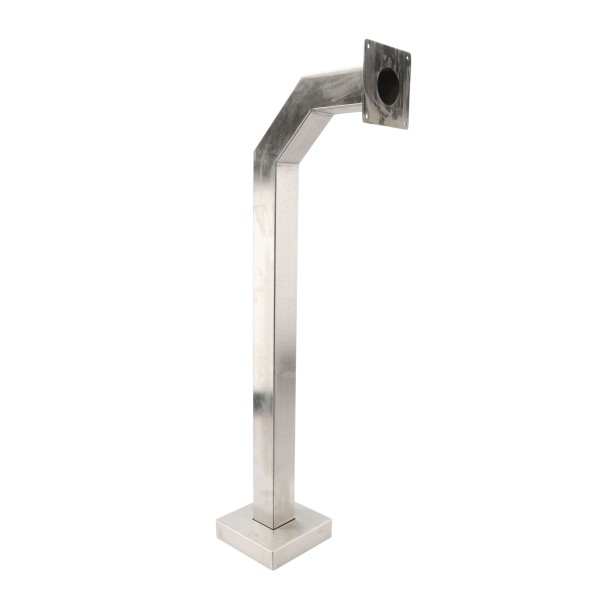

42" Stainless Steel Architectural Gooseneck Pedestal (Pad Mount) 42-3-12-SS

Do you live in a wet, coastal region where water, salt and other greater-than-normal corrosive effects are possible? This may be the gooseneck stand for you! Our 42" stainless steel pedestal features a 3" square tube with a 4.75" universal faceplate.

Part Number: 42-3-12-SS

$757.19 each
OR

Details

42" Stainless Steel Architectural Gooseneck Pedestal (Pad Mount) 42-3-12-SS

Do you live in a wet, coastal region where water, salt and other greater-than-normal corrosive effects are possible? Our 42" stainless steel pedestal features a 3" square tube with a 4.75" universal face plate.

This sturdy, heavy duty, pad mount, card reader pedestal for cars and pedestrians is constructed entirely of stainless steel, making it the ideal solution for highly-corrosive conditions. It is capable of mounting cameras, intercoms, keypads, entry/exit buttons, biometric readers, telephone entry systems, housings and many other access control devices and is most often installed for automatic gate entry and exit, parking lot and perimeter access applications.

It includes a face plate with universal hole patterns, heavy duty base plate and a sliding cover plate to hide the mounting bolts that secure the base. The neck is cut and welded to form an architectural design, while also allowing wiring to easily pass from the ground, through the pedestal, and into the access control device - making installation quick and simple. While most pedestals are made with 0.074" wall tubes, this pedestal features a 0.120" wall tube (62 percent more stainless steel) and is designed to withstand abuse from heavy weathering and vandalism; even passing our face wind testing protocol, determining that it is capable of surviving sustained Category 5 hurricane force winds of 157 mph.

Features:

  • Height: 42"
  • Neck Reach: 12"
  • Style: Architectural
  • Material: Stainless Steel
  • Finish: Brushed #4 (180 Grit) Stainless
  • Heavy Duty Tube Size: 3" x 3" x 0.120" Wall (11 Gauge)
  • Universal Face Plate Size: 4.75" x 4.75" x 0.120" (11 Gauge)
  • Universal Base Plate Size: 8" x 8" x 0.25" (1/4" Plate)
  • Cover Plate Size: 8.25" x 8.25" x 2.25" (16 Guage)
  • Includes (4) Carriage Bolts & (4) Nuts For Mounting

Specification Sheet

Installation Instructions

Stainless Steel Maintenance Guide

SKU 42-3-12-SS
Height 42"
Mount Style Pad Mount
Material Stainless Steel
Color Silver
Pedestal Style Architectural
Neck Throw 12" (45° Cut and Weld)
Post Size 3" Square
Baseplate 8" x 8"
Faceplate 4.75" x 4.75"
Gauge Size 11 Gauge
