4.5x6 Steel Hood - Single Gang Mullion (Narrow)

4.5x6 Steel Hood - Single Gang Mullion (Narrow)

The J-HOOD-CS-4.5X6M is an access control system hood that shields access control devices from outdoor elements. Ideal for parking facilities and gated entries, it protects card readers, intercoms, keypads, and buttons. Made from durable, corrosion-resistant 16-gauge steel, it also features knockouts and a large cutout for convenient wiring, as well as a tapered overhang for easy use.

Part Number: J-HOOD-CS-4.5X6M

$102.38 each
$102.38 each

Details

4.5x6 Steel Hood - Single Gang Mullion (Narrow)

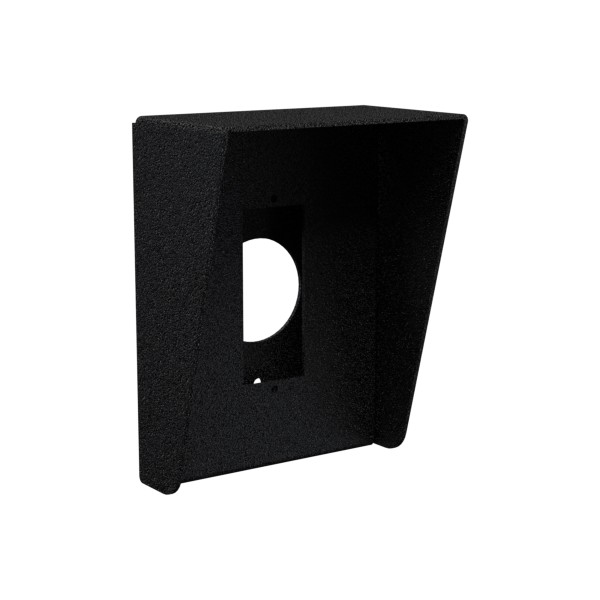

The 4.5" W x 6" H Portrait Black Carbon Steel Hood is a cutting-edge, universal outdoor rain guard designed to protect access control devices from the elements. Ideal for pedestrian and vehicle access points like parking facilities or gated entries, it ensures the safety of card readers, intercoms, keypads, and exit/entry buttons from weather and other potential threats. Made from 16-gauge steel, it's an exterior hood perfect for gooseneck stands. The overhang extends 2.75" and tapers down to a sidewall at 1.75". Built with a large 1.8" diameter access hole centered on the back side with multiple .25" knockouts to match up to any wall or pedestal.

Features:

Orientation: Portrait
Color: Black
Height: 6"
Width: 4.5"
Top Overhang: 2.75" tapered along sidewalls to bottom
Material: Carbon Steel 16 gauge
Compatible with Single Gang Mullion (Narrow)

Specification Sheet

Name	4.5x6 Steel Hood - Single Gang Mullion (Narrow)
SKU	J-HOOD-CS-4.5X6M
Color	Black
Height	6"
Dimensions	4.5" W x 6" H
Material	Carbon Steel
Orientation	Portrait
Price	$102.38
