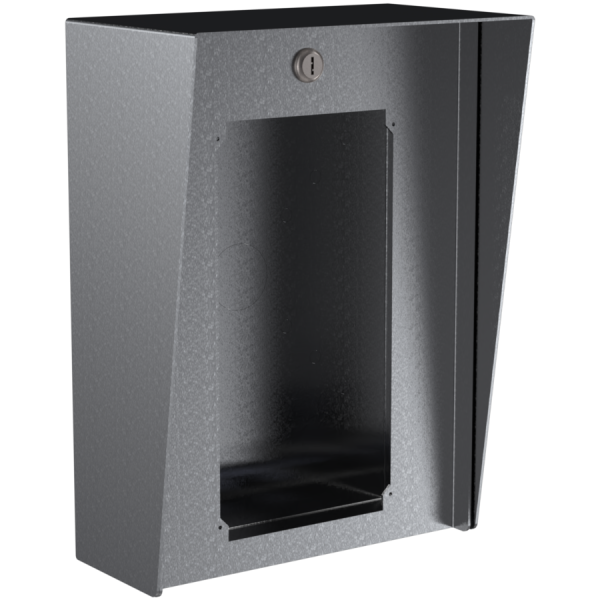

10" x 14" Stainless Steel Housing for Aiphone JP-DVF-RP10 - 1014HOU-AIPH-04-304

Details

10" x 14" Stainless Steel Housing for Aiphone JP-DVF-RP10 - 1014HOU-AIPH-04-304

This enclosure features a precision-cut faceplate for seamless integration with Aiphone IX-DVF-2RA, as well as models IXG-DM7-HID and HIDA. The 3" deep back box is protected by a 3.5" overhang at the top that tapers to 1.75" at the bottom for rain deflection. EPDM rubber seals and knockouts provide further protection and flexibility. Rated NEMA 4 for use in harsh weather conditions.

Key Features:

• Brushed Number 4 finish on 14-gauge Number 304 stainless steel
• 3" deep back box with tapered overhang for moisture protection
• 1.8" center hole with knockout options
• Weather-resistant EPDM rubber seals
• Designed to accommodate multiple Aiphone models

Specifications:

• Material: 14-gauge stainless steel
• Dimensions: 10" W x 14" H x 3" D
• Finish: Brushed Number 4
• Environmental Rating: NEMA 4

Includes:

• Stainless steel housing with cutout
• Integrated back box
• EPDM rubber seals

Important Note: All of our products need to be crafted custom and are Built to Order. These items cannot be returned or cancelled. Please ensure this product fits your exact specifications before ordering. See our latest notice for more information.
