77" Heavy-Duty Triple Head Gooseneck Pedestal For Special Projects (Pad Mount) - HD-78-4-TSP

Details

77" Heavy-Duty Triple Head Gooseneck Pedestal For Special Projects (Pad Mount) - HD-78-4-TSP

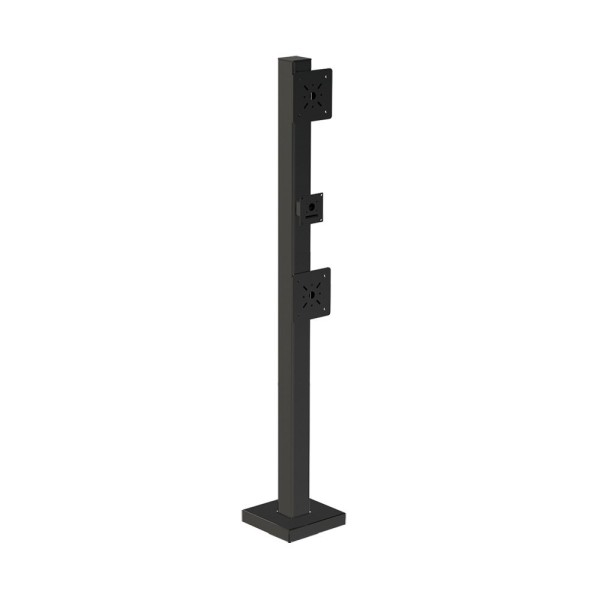

The HD-78-4-TSP is an all steel, powder coated black wrinkle, 77" heavy duty pedestal. It features a unique triple headed style, which is custom designed for special projects. Using a 4" x 4" square vertical tube for the post and 4" x 4" and 3" x 3" square horizontal tube for the arms, this pedestal stands 77.38" tall (from ground to the top of the vertical post.)  Includes two 8" x 8" face plates (top and bottom) and a single 4.75" x 4.75" face plate in the center. All 3 pedestal arms reach 4.15" from the center of the vertical post to the front of each face plate.  The 3 arms measure 72.25", 54.25", and 40.25" from the ground to their centers. The .25" thick pedestal base plate measures 12" x 12" with .770" holes on 10" centers.

Features:

• Height: 77.25"
• Finish: Black Wrinkle TGIC Outdoor Polyester Powder Coat
• Face Plate: (2) 8" x 8", (1) 4.75" x 4.75"
• Base Plate: 12" x 12", Holes On 10" Centers, 0.25" CRS
• Tube: 4" x 4" Square, .187" Wall
• Necks: 4.15" Reach (On Vertical Center)
• Material: Heavy Gauge Steel
• Included Hardware: (1) Polybag Per Face Plate (Each Containing (4) 1/4-20 Carriage Bolts and Nuts)
