8" x 12" Stainless Steel Steel Housing for Liftmaster CAPXS - 812HOU-LIFT-01-304

This 8" x 12" stainless steel housing is designed for LiftMaster CAPXS recessed installations. It features a brushed #4 finish, weather-sealed construction, and a 3" deep back box with a tapered overhang.
Part Number: 812HOU-LIFT-01-304
$351.80 each
$351.80 each
OR


Details

8" x 12" Stainless Steel Steel Housing for Liftmaster CAPXS - 812HOU-LIFT-01-304

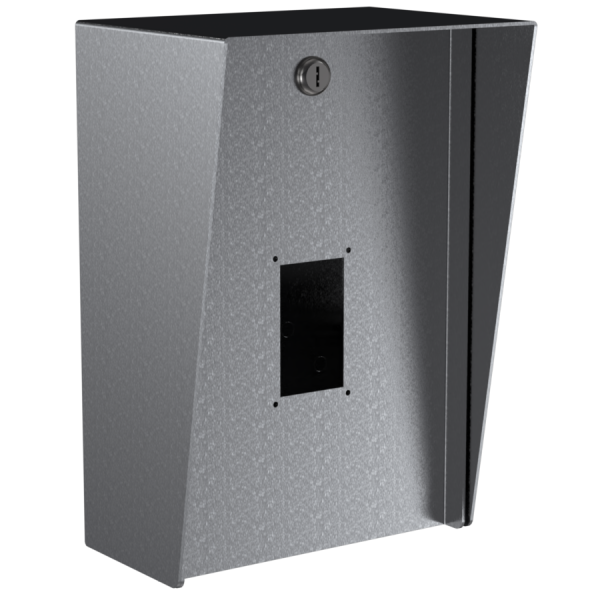

The 8" x 12" Stainless Steel Housing is specifically designed to enclose LiftMaster CAPXS recessed intercom systems. Made from 14-gauge #304 stainless steel, it features a brushed #4 finish and a 3" deep back box with a tapered 3" overhang that narrows to 1.75" at the base. The housing includes a 1.8" center hole with electrical knockouts and EPDM rubber seals to ensure NEMA 4-rated weather protection. This compact enclosure is ideal for outdoor pedestal or wall installations in commercial and residential access control settings.

Features

  • Fits LiftMaster CAPXS recessed intercoms
  • Brushed #4 stainless steel with a clean architectural finish
  • Weather-sealed with EPDM gaskets and electrical knockouts
  • Tapered top overhang enhances water runoff

Specifications

  • Dimensions: 8" x 12"
  • Material: 14-gauge #304 stainless steel
  • Finish: Brushed #4
  • Depth: 3 inches
  • Rating: NEMA 4
Prefer to Call? (888) 378-1045

Questions about part number 812HOU-LIFT-01-304?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 812HOU-LIFT-01-304
Color Silver
Orientation Portrait
Height 12"
Compatible Brand LiftMaster
Material Stainless Steel
