5" x 5" Buffer Plate for Card Readers CS-ABP-0505
Are you getting the read-range you want from your card reader? If not, it's likely that your card reader has contact or close proximity to metal, which is causing interference.

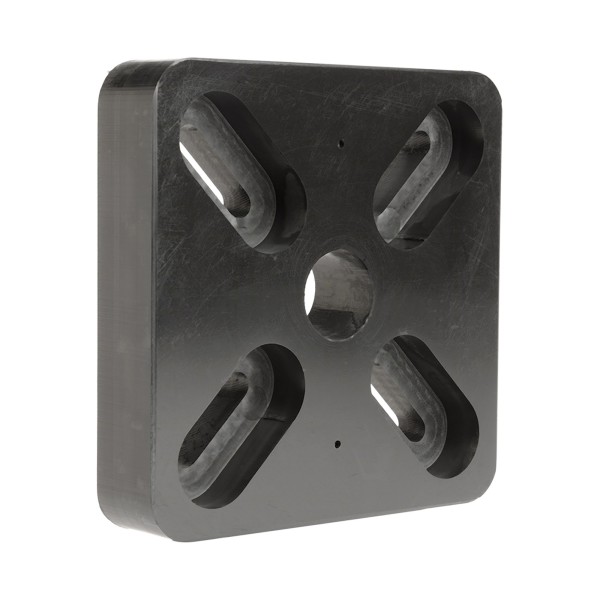

This buffer plate is designed to help. It solves the problem of insulating RF readers from a metal pedestal or housing. Constituted from High Density Polyethelene (HDPE), this buffer plate not only provides a dense, non-conductive back plate for your card reader, it also separates your RF reader a full inch away from the metal surface.
With its universal pattern of pre-drilled and countersunk holes, this buffer plate is designed to be little (if any) work for an installer to use for any combination of reader, pedestal, housing, wall, etc. Markings on the surface of the buffer plate match up to HID and other RF card reader hole patterns, and the countersunk holes allow the use of socket wrenches and recessed nuts so your card reader mounts flush. Lastly, these buffer plates have been designed with radius corners to match the most popular card readers.
When your install is complete, you'll have a much better read-range from your card reader and a professional, finished look.
- Size: 5" x 5" x 1" D
- Material: High Density Polyethelene (HDPE)
- Color: Black
|Dimensions||5" W x 5" H x 1" D|
|Material||High Density Polyethelene (HDPE)|
